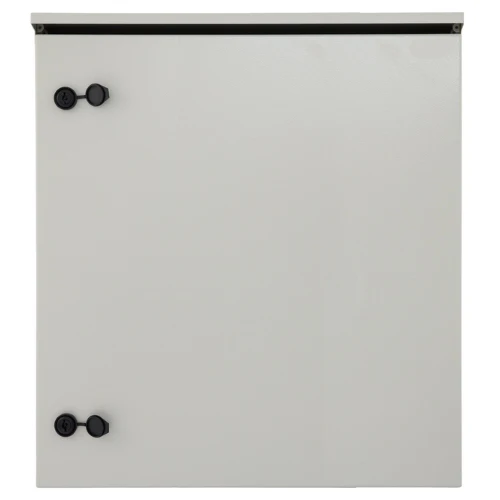

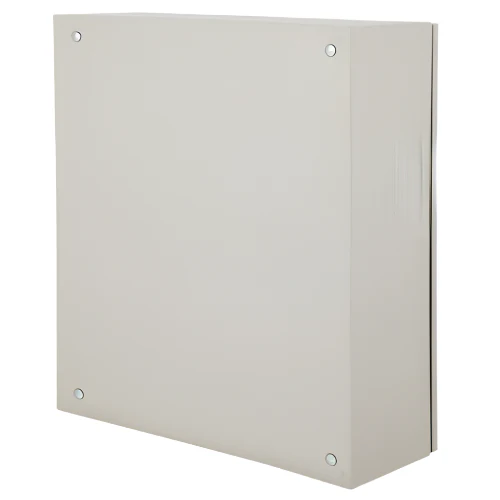

NEMA 4 Carbon Steel Enclosure 24 x 24 x 8'' Electrical Junction Box Hinged
Product details
| Management number | 230818075 | Release Date | 2026/06/18 | List Price | US$86.62 | Model Number | 230818075 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

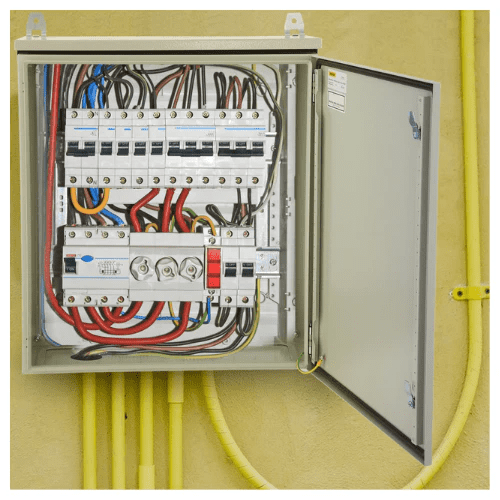

Durable Cold-Rolled Steel Construction Built for strength and longevity, this electrical enclosure is crafted from high-quality cold-rolled carbon steel using precision cutting and welding techniques. IP65 Waterproof Rating Engineered to withstand the elements, this enclosure features a high-performance foam/nylon sealing strip that delivers superior water and dust resistance. Rated IP65, it’s ideal for outdoor use. A compatible rain hood can be added to prevent water and debris from entering when the lid is open. Enhanced Security and Durability Designed with a reinforced lock core and high-strength hinges, the enclosure provides improved security and durability. The robust locking mechanism ensures a secure seal, while the heavy-duty hinges prevent the lid from warping or breaking under pressure. Easy Installation and Setup For maximum convenience, the enclosure includes a detachable galvanized mounting backplate, allowing for hassle-free installation of electrical components. It also comes with complete mounting accessories and four pre-drilled holes for quick wall installation. Thoughtful, User-Friendly Design Every detail is optimized for performance and safety. Pre-installed grounding screws, smooth cable entry cutouts, and a thoughtfully designed bottom for easy wiring make this enclosure ideal for a wide range of applications. Package Contents : 1 x Guide Rail 1 x Rain Hood 4 x Hanging Lugs 1 x Gasket (for Enclosing Plate) 1 x Earth Wire 3 x Earth Labels 2 x Keys 8 x Plugs 1 x Accessories Package 1 x Set of Fasteners (quantity varies by type)
- Application: Indoor / Outdoor
- Body Material: 0.15 cm Cold-Rolled Carbon Steel
- Finish: Powder Coating (Surface Pickling & Passivization)
- Rating: NEMA Type 4
- Protection Grade: IP65, IK10
- Inner Plate: 0.15 cm Galvanized Plate
- Galvanized Backplate (H x W): 22.2" x 22" (564 x 559 mm)
- Construction: Continuously Welded
- Gasket Material: Seamless Foam / Nylon (washer or plug)
- Dimensions (H x W x D):
- Outer: 24" x 24" x 8" (610 x 610 x 203 mm)
- Inner: 23.5" x 23.5" x 7" (597 x 597 x 178 mm)
- Mounting Hole Diameter (±0.2 cm): 0.35" (8.9 mm)
- Ambient Temperature: -40 to 122℉ / -40 to 55℃
- Color: White Gray
- Weight: 55.56 lbs / 25.2 kg
- Certification: TUV, CE, 508A (CSA C22.2 No. 14-13)
| Electrical box type | Junction Box |
|---|---|
| Assembled product height | 24" |
| Has nrtl listing certification | N |
| Material | Carbon Steel |
| Brand | Nassau National Cable |
| Color | White Gray |
| Weight | 55.56 lbs |
| Features | Durable, Waterproof |
| Has written warranty | No |
